Product Series

RHS1200 / RHS1800 / RHS3000

We are a large-scale manufacturing enterprise engaged in research anddevelopmentm,production,processing,and sales of lifting belts

Key words：

Corner protector

Category ：

Hand winch

PHONE：

+86-15359541111

E-mail：

maising@tiekerigging.com

Whatsapp：

+86-15359541111

OTHER PRODUCT

SEND EMAIL TO US

Equipped with a friction braking device, it automatically activates the dual brake system 1 lifting self-locking under gravity load. Ensuring sustained and positive restraint actions can prevent load slippage. The fully automatic brake allows the handle to be released at any time, keeping the load in the required position for a higher safety factor, avoiding the disadvantage of ordinary ratchet winches dropping ropes and objects.

Item NO.	Rated load capacity LB	Experimental loads KN	Ratio	Main sizes（mm）								N.W ( KG) net weight(KG)
Item NO.	Rated load capacity LB	Experimental loads KN	Ratio	A	B	C	D	E	F	G	H	N.W ( KG) net weight(KG)
RHS1200	1200	8	4.2:1	182	156	88	288	51	204	109	32	3.8
RHS1800	1800	12	5.0:1	244	200	108	292	56	312	109	32	8.1
RHS3000	3000	17.5	10.0:1	292	214	128	318	60	312	109	32	10.3

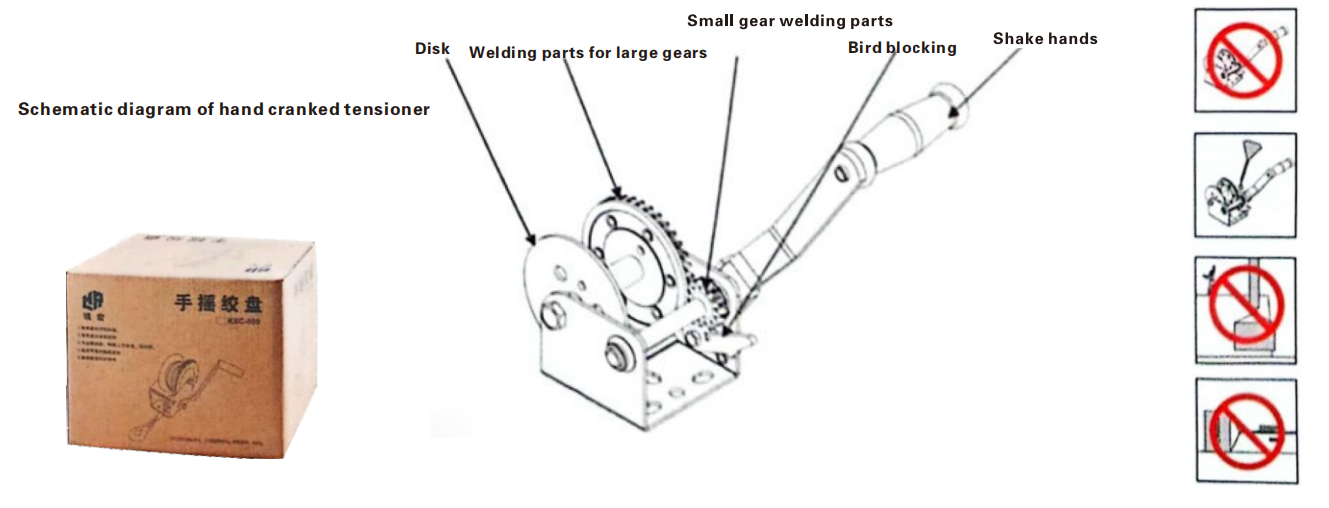

1、 Instructions for using a hand cranked winch

The hand cranked winch produced by our company has different types of straps or steel cables with different loads, and its usage method is as follows:

1. Fix the hand winch and hang the hook in a fixed position;

2. Rotate the joystick, the small gear overcomes the spring force to rotate, and the small gear drives the large gear to rotate, gradually contracting the webbing or steel rope;

3. When the large gear rotates, due to the force of the spring, the bird guard always falls

between the two teeth of the small gear; Relax the hand shake, under stress, the bird guard prevents the small gear from reversing, so the ribbon and belt shaft will not reverse under stress; Make towing and moving items safer.

!! Warning!!

1. Read all operating instructions before use.

2. Perform routine checks on the tool before use.

3. Regularly apply lubricating oil to the running parts.

4. When operating, please be careful to keep others away from the operating area.

5. It is not allowed to be used as a lifting device, especially for carrying people.

6. Do not use if the wire rope or rope is found to be worn out.

7. Do not exceed the working load.

8. Do not use a handle extender to increase leverage.

9. The load must be in a straight line and the hook must be aligned with the hook.

10. Keep hands and clothing away from all moving parts.

11. Do not wrap the wire rope or rope around an object or hook yourself.
